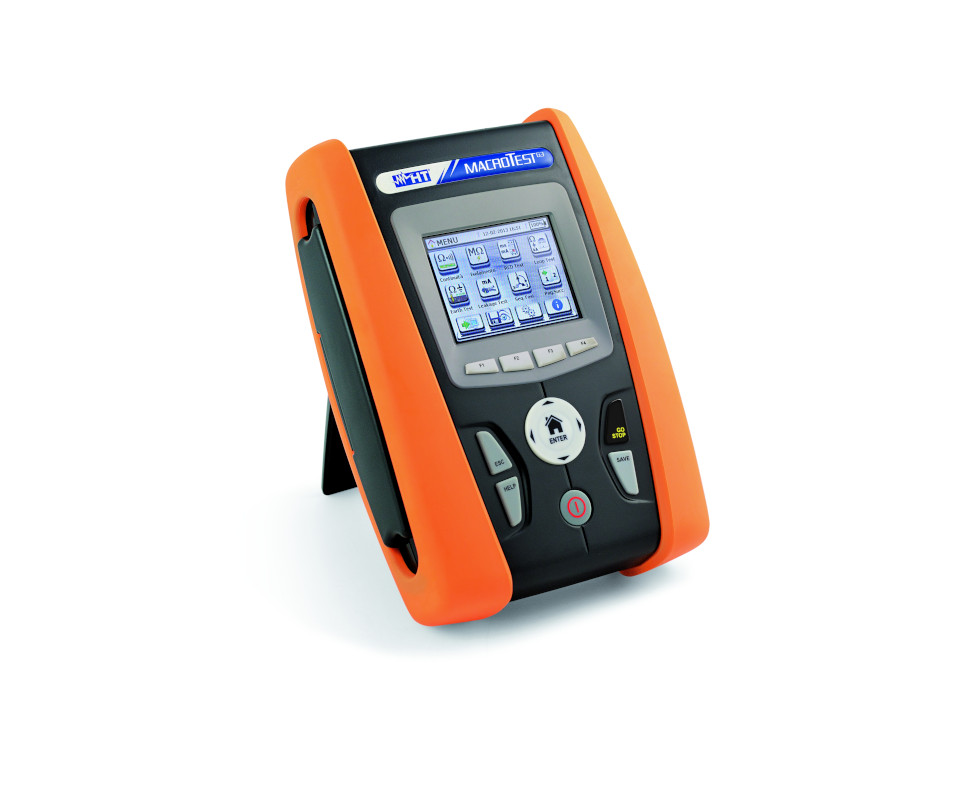

MACROTEST G3, κωδικός 6909310-70

Αναλυτική περιγραφή https://www.ht-instruments.com/en/products/installation-testers/multifunction/macrotestg3/
Insulation with test voltages 100, 250, 500, 1000VDC
Continuity of protective conductors with 200mA
Tripping time and current of RCDs type B, A, AC Standard, Selective and Delayed up to 1A
Earth resistance by voltammetric method
Resistance of the single earth rods with clamp With optional accessory clamp T2100
Ground resistivity by 4-wire method
Loop/Line impedance, Phase-Phase, Phase-Neutral, Phase-PE
Measurement of percentage voltage drop on the line
AUTO test (Non-trip ground resistance, RCD, Insulation) in sequence
Contact voltage
Phase sequence
Leakage current with optional clamp meter
Measurement of Voltage, Current, Active, Reactive, Apparent Power (1)
Measurement of Cosphi, Power Factor (1)
Voltage and current harmonics up to the 49th with THD 25th
Measurement of environmental parameters (°C,°F, %RH, Lux)
Protection category CAT IV 300V
Help on line on the display
Internal memory for measured data saving Optical/USB seri Integrated WiFi connection and compatibility with HTANALYSIS App al port for PC connection
Size (LxWx H) (mm) 222x162x57
Weight in grams (batteries included) 1200
Όργανα ηλεκτρικών μετρήσεων – HT Italia

MACROTEST G3, κωδικός 6909310-70

H.S Code:
6909310-70
,
Product code:
6909310-70
,
Customs tariff No.:,
Gross weight:
1200.00
,
PU:
1.00
Certificates
CE
Additional Information
