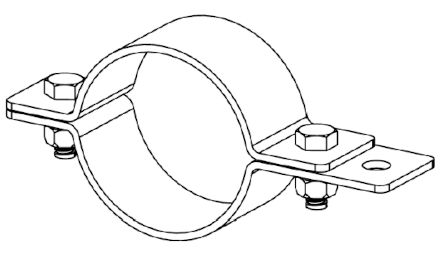

Pipe clamp one point connection, code: 6501312

Material Hot dip galvanized steel (St/tZn)
Bolts / nuts M8x25 mm, St/tZn hexagon head bolts, M8 St/tZn nuts
Pipe's diameter (mm / inch) Ø99–104 / 3½''
Connection arrangements Parallel (B7), “T” (B8)
Installation Above ground, buried in ground
Can be connected above ground with Pipes made from Al, Stainless Steel (SSt), St/tZn & conductors made from Al, Stainless Steel (SSt), St/tZn, Cu/eSn and through bimetallic contact with Cu or St/eCu.
Can be connected buried in ground with Pipes and conductors made from stainless Steel (SSt) or St/tZn
Tightening torque 13 Nm
Connection to conductor Through clamp (not included)
Earthing components

Pipe clamp one point connection, code: 6501312

H.S Code:
73269098
,
Product code:
6501312-71
,
Customs tariff No.:,
Gross weight:
480.00
gr,
PU:
Certificates
tested
Additional Information
