Connection components for LPS conductors

Connection components

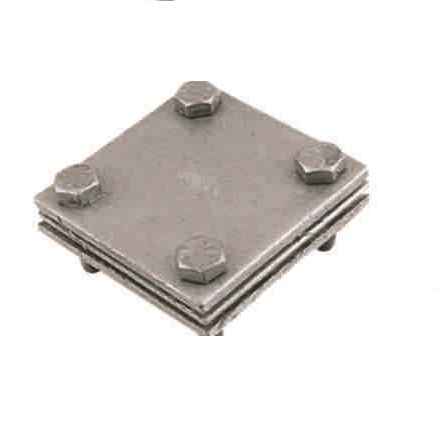

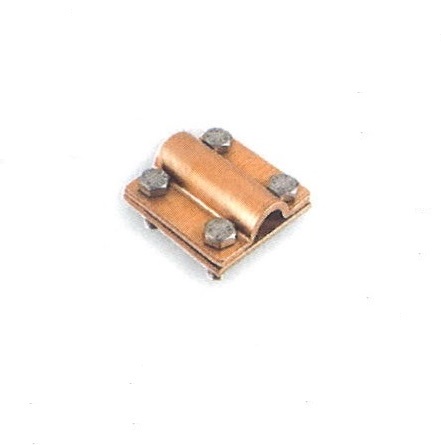

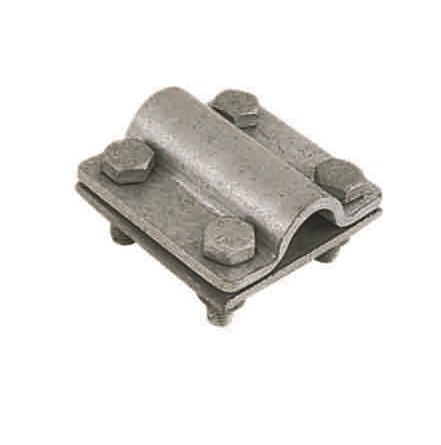

Connection components for LPS conductors used in air termination and down conductors, tested according to IEC EN 62561 - 1.

St/tZn bonding clamp, code 6201005-71

Images
Additional Information
Certificates
tested
Technical data
Material Hot dip galvanized steel (St/tZn)
Description Is consisted of a plate with dimensions 80x60 mm and four “jaws” for the conductor / “I” beam clamping.
Bolts / nuts M10x40 mm, hot dip galvanized steel carriage bolts. / M10 hot dip galvanized steel nuts.
Conductor's dimensions Ø8–10 mm (50–70 mm2).
Tape's dimensions 20-40 mm & up to 5 mm thickness.
Dimensions of “I” beam Up to 18 mm thickness.
Connection arrangements Parallel connection (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Stainless Steel (SSt), St/tZn.
Can be connected buried in ground with Stainless Steel (SSt), St/tZn.
Can be connected in concrete with Cu, Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Tightening torque 17 Nm.
Clamp for electrical connection of “I” beam to round, stranded or tape conductor. Used in air termination system, down conductor system, earthing system.
GTIN:
6201005-81
,
Product code:
6201005-71
,
Customs tariff No.:,
Gross weight: ,
PU:
20.00
Related products

Stainless steel tape (30mm/30mm) clamp, code 6261833-71

Images
Additional Information
Certificates
tested
short-corcuit tested
Technical data
Material Stainless steel (SSt grade V2A).
Description Is consisted of two external plates with dimensions 50x50 mm and one intermediate plate.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts. / M6 V2A stainless steel nuts.
Tape's dimensions Up to 30 mm width and 5 mm thickness.
Connection arrangements Cross connection (B1). / Parallel connection (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu/eSn, Stainless Steel (SSt).
Can be connected buried in ground with Cu, Cu/eSn, Stainless Steel, St/tZn (St/tZn not simultaneously with Cu & Cu/eSn).
Can be connected in concrete with Cu, Cu/eSn, Stainless Steel (SSt), St/tZn.
Tightening torque 9 Nm.
Clamp, for connecting tape conductors. Used in air termination system, down conductor system, earthing system.
GTIN:
6261833-81
,
Product code:
6261833-71
,
Customs tariff No.:,
Gross weight:
138.00
,
PU:
25.00
Related products

Stainless steel round to tape conductor connector (Ø8-10mm/30mm) with intermediate plate, code 6261831-71

Images
Additional Information
Certificates
tested
Technical data
Material Stainless steel (SSt grade V2A).
Description Is consisted of two external plates with dimensions 50x50 mm and one intermediate plate.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts. / M6 V2A stainless steel nuts.
Conductor's dimensions Ø8–10 mm (50–70 mm2).
Tape's dimensions Up to 30 mm width and 5 mm thickness.
Connection arrangements Cross connection (B1). / Parallel connection (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Cu, Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Can be connected buried in ground with Cu, Cu/eSn, Stainless Steel, St/eCu, St/tZn (St/tZn not simultaneously with Cu, St/eCu).
Can be connected in concrete with Cu, Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Tightening torque 9 Nm.
Clamp for connecting solid round or stranded conductor to tape conductor. Used in air termination system, down conductor system, earthing system.
GTIN:
6261831-81
,
Product code:
6261831-71
,
Customs tariff No.:,
Gross weight:
138.00
,
PU:
25.00
Related products

Stainless steel round to tape conductor connector (Ø8-10mm/30mm), code 6261830-71

Images
Additional Information
Certificates
tested
short-corcuit tested
Technical data
Material Stainless steel (SSt grade V2A).
Description Is consisted of two plates with dimensions 50x50 mm.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts. / M6 V2A stainless steel nuts.
Conductor's dimensions Ø8–10 mm (50–70 mm2).
Tape's dimensions Up to 30 mm width and 5 mm thickness.
Connection arrangements Cross connection (B1). / Parallel connection (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Cu, Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn (Al & St/tZn not simultaneously with Cu & St/eCu).
Can be connected buried in ground with Cu, Cu/eSn, Stainless Steel, St/eCu, St/tZn (St/tZn not simultaneously with Cu, Cu/eSn & St/eCu).
Can be connected in concrete with Cu, Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Tightening torque 9 Nm.
Clamp for connecting solid round or stranded conductor to tape conductor. Used in air termination system, down conductor system, earthing system.
GTIN:
6261830_81
,
Product code:
6261830-71
,
Customs tariff No.:,
Gross weight:
114.00
,
PU:
25.00
Related products

Stainless steel connection clamp for Ø8–10mm conductors, code 6261810-71

Images
Additional Information
Certificates
Tested
Technical data
Material Stainless steel (SSt grade V2A).
Description Is consisted of two external plates with dimensions 50x50 mm and one intermediate plate.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts, M6 V2A stainless steel nuts.
Conductor's dimensions Ø8–10 mm (50–70 mm2).
Connection arrangements Cross (B1). / Parallel (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Cu, Cu/eSn, ανοξείδωτο χάλυβα (SSt), St/eCu, St/tZn.
Can be connected buried in ground with Cu, Cu/eSn, Stainless Steel, St/eCu, St/tZn (St/tZn not simultaneously with Cu, St/eCu).
Can be connected in concrete with Cu, Cu/eSn, ανοξείδωτο χάλυβα (SSt), St/eCu, St/tZn.
Tightening torque 9 Nm.
Clamp, for connecting solid round or stranded conductors. Used in air termination system, down conductor system, earthing system.
GTIN:
6261810-81
,
Product code:
6261810-71
,
Customs tariff No.:,
Gross weight:
144.00
,
PU:
25.00
Related products

Stainless steel connection clamp for 16–35mm2 conductors, code 6261836-71

Images
Additional Information
Certificates
ELEMKO_tested
Technical data
Material Stainless steel (SSt grade V2A).
Description Is consisted of two external plates with dimensions 50x50 mm and one intermediate plate.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts, M6 V2A stainless steel nuts.
Conductor's dimensions 16–35 mm2.
Connection arrangements Cross (B1). / Parallel (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Cu, Cu/eSn, Stainless Steel (SSt), St/tZn.
Can be connected buried in ground with Cu, Cu/eSn, Stainless Steel, St/tZn (St/tZn not simultaneously with Cu & Cu/eSn).
Can be connected in concrete with Cu, Cu/eSn, SSt (Stainless Steel), St/eCu, St/tZn.
Tightening torque 9 Nm.
Clamp, for connecting solid round or stranded conductors. Used in air termination system, down conductor system, earthing system.
GTIN:
6261836-81
,
Product code:
6261836-71
,
Customs tariff No.:
929.3.2.2
,
Gross weight:
136.00
,
PU:
25.00
Related products

Stainless steel round to tape conductor clamp (16-35mm2/30mm), code 6261835-71

Images
Additional Information
Certificates
tested
Technical data
Material Stainless steel (SSt grade V2A)
Description Is consisted of two plates with dimensions 50x50 mm.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts. / M6 V2A stainless steel nuts.
Conductor's dimensions 16–35 mm2.
Tape's dimensions Up to 30 mm width and 5 mm thickness.
Connection arrangements Cross connection (B1). / Parallel connection (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Cu, Cu/eSn, Stainless Steel (SSt), St/tZn (Al & St/tZn not simultaneously with Cu).
Can be connected buried in ground with Cu, Cu/eSn, Stainless Steel, St/tZn (St/tZn not simultaneously with Cu & Cu/eSn).
Can be connected in concrete with Cu, Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Tightening torque 9 Nm.
Clamp for connecting solid round or stranded conductor to tape conductor. Used in air termination system, down conductor system, earthing system.
GTIN:
6261835-81
,
Product code:
6261835-71
,
Customs tariff No.:
929.3.2.2
,
Gross weight:
110.00
,
PU:
25.00
Related products

Stainless steel round to tape conductor clamp (16-35mm2/30mm), with intermediate plate, code 6261834-71

Images
Additional Information
Certificates
tested
Technical data
Material Stainless steel (SSt grade V2A)
Description Is consisted of two external and one intermediate plates, with dimensions 50x50 mm.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts. / M6 V2A stainless steel nuts.
Conductor's dimensions 16–35 mm2.
Tape's dimensions Up to 30 mm width and 5 mm thickness.
Connection arrangements Cross connection (B1). / Parallel connection (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Cu, Cu/eSn, Stainless Steel (SSt), St/tZn.
Can be connected buried in ground with Cu, Cu/eSn, Stainless Steel, St/tZn (St/tZn not simultaneously with Cu & Cu/eSn).
Can be connected in concrete with Cu, Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Tightening torque 9 Nm.
Clamp for connecting solid round or stranded conductor to tape conductor. Used in air termination system, down conductor system, earthing system.
GTIN:
6261834-81
,
Product code:
6261834-71
,
Customs tariff No.:
929.3.2.2
,
Gross weight:
138.00
gr/piece,
PU:
25.00
pieces
Related products

Stainless steel universal connector - clamp, code 6266008-71

Images
Additional Information
Certificates
Tested
Technical data
Material Stainless steel (SSt grade V2A).
Description Is consisted of two plates with dimensions 36x35 mm.
Bolts / nuts M8x30 mm, V2A stainless steel carriage bolt, M8 V2A stainless steel nut.
Conductor's dimensions Ø6–10 mm (25–70 mm2).
Dimension of metal installation (thickness) Up to 5 mm.
Connection arrangements Cross (B1). / Parallel (B2, B5). / "T" (B6).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Cu, Cu/eSn, ανοξείδωτο χάλυβα (SSt), St/eCu, St/tZn (Al & St/tZn not simultaneously with Cu, St/eCu).
Can be connected buried in ground with Cu, Cu/eSn, Stainless Steel, St/eCu, St/tZn (St/tZn not simultaneously with Cu, St/eCu).
Can be connected in concrete with Cu, Cu/eSn, ανοξείδωτο χάλυβα (SSt), St/eCu, St/tZn.
Tightening torque 13 Nm.
Clamp, for connecting solid round or stranded conductors, bonding of metallic structures etc. Used in air termination system, down conductor system, earthing system.
GTIN:
6266008-81
,
Product code:
6266008-71
,
Customs tariff No.:,
Gross weight:
76.00
gr/piece,
PU:
50.00
pieces
Related products

Copper connection clamp for 16–35mm2 conductors, code 6221836-71

Images
Additional Information
Certificates
ELEMKO_tested
Technical data
Material Copper (Cu).
Description Is consisted of two external plates with dimensions 50x50 mm and one intermediate plate.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts, M6 V2A stainless steel nuts.
Conductor's dimensions 16–35 mm2.
Connection arrangements Cross (B1). / Parallel (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu/eSn, SSt (Stainless Steel), St/eCu.
Can be connected buried in ground with Cu, Cu/eSn, SSt (Stainless Steel), St/eCu.
Can be connected in concrete with Cu, Cu/eSn, SSt (Stainless Steel), St/eCu, St/tZn.
Tightening torque 9 Nm.
Clamp, for connecting solid round or stranded conductors. Used in air termination system, down conductor system, earthing system.
GTIN:
6221836-81
,
Product code:
6221836-71
,
Customs tariff No.:
929.3.2.2
,
Gross weight:
150.00
,
PU:
25.00
Related products
