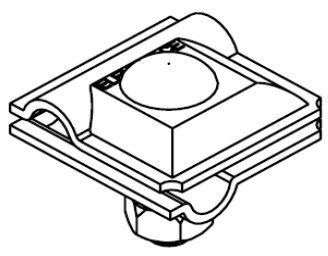

Stainless steel universal connector – clamp, code: 6268014
H.S Code:
72209080
,
Product code:
6268014-71
,
Customs tariff No.:,
Gross weight:
80.00
gr,
PU:
Certificates
Additional Information
Related products
Diameter 8 mm.
Cross sectional area 50 mm2.
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Electrical resistance ≤0,387 Ω/km.
Tensile strength 200 – 450 N/mm2.
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Straightening For straightening can be used straightener, ELEMKO code 6900100.
Ø8mm copper solid round conductor, code 6420008-70
H.S Code:
6420008-80
,
Product code:
6420008-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
450.00
gr/m,
PU:
70.00
m
Certificates
Additional Information
Ø8mm copper solid round conductor, code 6420008-70
H.S Code:
6420008-80
,
Product code:
6420008-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
450.00
gr/m,
PU:
70.00
m
Diameter 8,9 mm.
Cross sectional area 50 mm2.
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Electrical resistance ≤0,391 Ω/km.
Tensile strength 200 – 450 N/mm2.
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
50mm2 nominal cross sectional area copper stranded conductor, code 6420108-70
H.S Code:
6420108-80
,
Product code:
6420108-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
415.00
gr/m,
PU:
100.00
m
Certificates
Additional Information
50mm2 nominal cross sectional area copper stranded conductor, code 6420108-70
H.S Code:
6420108-80
,
Product code:
6420108-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
415.00
gr/m,
PU:
100.00
m
Diameter 8 mm.
Cross sectional area 50 mm2.
Core material Steel (St).
Coating material Zinc (Zn).
Zinc coating weight >350 gr/m2.
Type of coating method Hot dip.
Electrical resistivity <0,25 μΩm.
Tensile strength 290 – 510 N/mm2.
Installation Above ground, embedded in concrete.
Can be connected above ground with Al, Stainless Steel (SSt), St/tZn.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, SSt (Stainless Steel), St/eCu, St/tZn.
Straightening For straightening can be used straightener, ELEMKO code 6900100.
Ø8mm hot dip galvanized steel solid round conductor (50m coil), code 6400118-70
H.S Code:
6400118-80
,
Product code:
6400118-70
,
Customs tariff No.:
929.3.5.1
,
Gross weight:
395.00
gr/m,
PU:
50.00
m
Certificates
Additional Information
Ø8mm hot dip galvanized steel solid round conductor (50m coil), code 6400118-70
H.S Code:
6400118-80
,
Product code:
6400118-70
,
Customs tariff No.:
929.3.5.1
,
Gross weight:
395.00
gr/m,
PU:
50.00
m
Diameter 8 mm.
Cross sectional area 50 mm2.
Material Aluminium (Al).
Electrical resistivity <0,036 μΩm.
Tensile strength 120 – 280 N/mm2.
Installation Above ground.
Can be connected above ground with Al, Stainless Steel (SSt), St/tZn.
Ø8mm aluminium solid round conductor, code 6440008-70
H.S Code:
6440008-80
,
Product code:
6440008-70
,
Customs tariff No.:
929.3.5.1
,
Gross weight:
135.00
gr/m,
PU:
400.00
m
Certificates
Additional Information
Ø8mm aluminium solid round conductor, code 6440008-70
H.S Code:
6440008-80
,
Product code:
6440008-70
,
Customs tariff No.:
929.3.5.1
,
Gross weight:
135.00
gr/m,
PU:
400.00
m
