Fasteners for earth conductors

Στηρίγματα αγωγών γείωσης

fasteners for earth conductors, tested according to IEC EN 62561 - 4 and IEC EN 62561 - 1 in case the fastener can also provide and electrical connection.

Copper alloy fastener for conductor 240mm2, code 6130240-71

Images
Additional Information
Certificates
Technical data
Material Copper alloy (Cu-A)
Conductor clamping screw M26 copper alloy hex socket set screw
Bottom thread M8
Diameter 35 mm
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N. Axial load, 50 N.
Conductor's dimensions 240 mm2
Compatibility with conductors made of Cu, Cu/eSn, SSt (Stainless Steel)
Tightening torque of conductor 7 Nm
Fixing on brick or concrete wall Through a head threaded drive pin or wood screw (not included) and a PVC wall plug (not included)
Fixing on metallic surface Through M8 screw
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor used in air termination system, down conductor system. Suitable for brick, concrete or metallic surfaces.
GTIN:
6130240-81
,
Product code:
6130240-71
,
Customs tariff No.:,
Gross weight:
196.00
gr/piece,
PU:
50.00
pieces
Related products

Copper alloy fastener for conductor 150–185mm2, code 6130185-71

Images
Additional Information
Certificates
Technical data
Material Copper alloy (Cu-A)
Conductor clamping screw M24, copper alloy hex socket set screw
Bottom thread M8
Diameter 32 mm
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N. Axial load, 50 N.
Conductor's dimensions 150–185 mm2
Compatibility with conductors made of Cu, Cu/eSn, SSt (Stainless Steel)
Tightening torque of conductor 7 Nm
Fixing on brick or concrete wall Through a head threaded drive pin or wood screw (not included) and a PVC wall plug (not included)
Fixing on metallic surface Through M8 screw
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor used in air termination system, down conductor system. Suitable for brick, concrete or metallic surfaces.
GTIN:
6130185-81
,
Product code:
6130185-71
,
Customs tariff No.:,
Gross weight:
88.00
gr/piece,
PU:
50.00
pieces
Related products

Copper alloy fastener for conductor 95–120mm2, code 6130120-71

Images
Additional Information
Technical data
Material Copper alloy (Cu-A)
Conductor clamping screw M18, V2A stainless steel hex socket set screw
Bottom thread M8
Diameter 25 mm
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N. Axial load, 50 N.
Conductor's dimensions 95–120 mm2
Compatibility with conductors made of Cu, Cu/eSn, SSt (Stainless Steel)
Tightening torque of conductor 7 Nm
Fixing on brick or concrete wall Through a head threaded drive pin or wood screw (not included) and a PVC wall plug (not included)
Fixing on metallic surface Through M8 screw
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor used in air termination system, down conductor system. Suitable for brick, concrete or metallic surfaces.
GTIN:
6130120-81
,
Product code:
6130120-71
,
Customs tariff No.:,
Gross weight:
82.00
gr/piece,
PU:
100.00
pieces
Related products

Copper alloy fastener for conductor 50–70mm2, code 6130071-71

Images
Additional Information
Certificates
tested
Technical data
Material Copper alloy (Cu-A)
Conductor clamping screw M16, V2A stainless steel hex socket set screw
Bottom thread M6
Diameter 22 mm
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N. Axial load, 50 N.
Conductor's dimensions 50–70 mm2
Compatibility with conductors made of Cu, Cu/eSn, SSt (Stainless Steel)
Tightening torque of conductor 5 Nm
Fixing on brick or concrete wall Through a head threaded drive pin or wood screw (not included) and a PVC wall plug (not included)
Fixing on metallic surface Through M6 screw
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor used in air termination system, down conductor system. Suitable for brick, concrete or metallic surfaces.
GTIN:
6130071-81
,
Product code:
6130071-71
,
Customs tariff No.:,
Gross weight:
53.00
gr/piece,
PU:
200.00
pieces
Related products

Copper alloy fastener for conductor 50–70mm2, code 6130070-71

Images
Additional Information
Certificates
tested
Technical data
Material Copper alloy (Cu-A)
Conductor clamping screw M16, V2A stainless steel hex socket set screw
Bottom thread M8
Diameter 22 mm
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N. Axial load, 50 N.
Conductor's dimensions 50–70 mm2
Compatibility with conductors made of Cu, Cu/eSn, SSt (Stainless Steel)
Tightening torque of conductor 5 Nm
Fixing on brick or concrete wall Through a head threaded drive pin or wood screw (not included) and a PVC wall plug (not included)
Fixing on metallic surface Through M8 screw
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor used in air termination system, down conductor system. Suitable for brick, concrete or metallic surfaces.
GTIN:
6130070-81
,
Product code:
6130070-71
,
Customs tariff No.:,
Gross weight:
53.00
gr/piece,
PU:
200.00
pieces
Related products

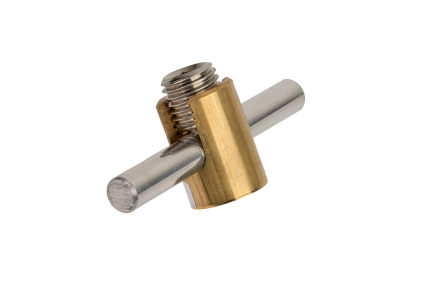

Copper alloy fastener for conductor 16–35mm2, code 6130035-71

Images
Additional Information
Certificates
tested
Technical data
Material Copper alloy (Cu-A)
Conductor clamping screw M12, V2A stainless steel hex socket set screw
Bottom thread M8
Diameter 20 mm
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N / Axial load, 50 N
Conductor's dimensions 16–35 mm2
Compatibility with conductors made of Cu, Cu/eSn, SSt (Stainless Steel)
Tightening torque of conductor 5 Nm
Fixing on brick or concrete Through a head threaded drive pin or wood screw (not included) and a PVC wall plug (not included).
Fixing on metallic surface Through M8 screw.
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor. Suitable for brick, concrete or metallic surfaces
GTIN:
6130035-81
,
Product code:
6130035-71
,
Customs tariff No.:,
Gross weight:
40.00
gr/piece,
PU:
200.00
pieces
Related products

Copper alloy fastener for conductor 16–35mm2, code 6130034-71

Images
Additional Information
Certificates
tested
Technical data
Material Copper alloy (Cu-A)
Conductor clamping screw M12, V2A stainless steel hex socket set screw
Bottom thread M6
Diameter 20 mm
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N / Axial load, 50 N
Conductor's dimensions 16–35 mm2
Compatibility with conductors made of Cu, Cu/eSn, SSt (Stainless Steel)
Tightening torque of conductor 5 Nm
Fixing on brick or concrete Through a head threaded drive pin or wood screw (not included) and a PVC wall plug (not included).
Fixing on metallic surface Through M6 screw.
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor. Suitable for brick, concrete or metallic surfaces
GTIN:
6130034-81
,
Product code:
6130034-71
,
Customs tariff No.:,
Gross weight:
42.00
gr/piece,
PU:
200.00
pieces
Related products

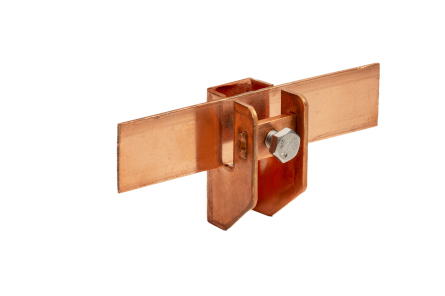

Copper tape fastener on equipotential ring bar, code 6123005-71

Images
Additional Information
Certificates
tested
Technical data
Material Copper (Cu).
Screw M8x20 mm, V2A stainless steel screw
Conductor's dimensions Tape conductor up to 6 mm thickness
Compatibility with conductors made of Cu, Cu/eSn, SSt (Stainless Steel)
Tightening torque of conductor 5 Nm.
Fixing on brick or concrete wall Through a wood fixing screw (not included) and a PVC wall plug Ø8 mm (not included).
Fixing on metallic surface Through a blind rivet nut for 0,25–3,5mm surface thickness (ELEMKO code 6504409 – not included) and an M6x40 mm screw (ELEMKO code 5720640 – not included).
Spacing between fasteners ≤500 mm. / ≤300 mm before and after bending.
Fastening tape conductor used in earthing system (equipotential ring bar). Suitable for brick walls, concrete walls or metallic surfaces.
GTIN:
6123005-81
,
Product code:
6123005-71
,
Customs tariff No.:,
Gross weight:
122.00
,
PU:
25.00
Related products

Tape – conductor fastener with safety clip, code 6103025-71

Images
Additional Information
Certificates
Technical data
Material Hot dip galvanized steel (St/tZn)
Length 250 mm
Tape's thickness 3 mm (side with indication “3”) / 4 mm (side with indication “4”)
Spacing between fasteners ≤2000 mm
Driving length into the soil Up to the notch
Conductor's fastening By bending the appropriate safety clip
Can support conductors made of Cu, Cu/eSn, SSt (Stainless Steel), St/tZn
For vertical installation of tape conductor in earthing system, installed in a trench filled with soil or concrete.
GTIN:
6103025-81
,
Product code:
6103025-71
,
Customs tariff No.:,
Gross weight:
164.00
,
PU:
100.00
Related products

Tape – conductor fastener with safety clip 400mm length, code 6103040-71

Images
Additional Information
Certificates
Technical data
Material Hot dip galvanized steel (St/tZn)
Length 400 mm
Tape's thickness 3 mm (side with indication “3”) / 4 mm (side with indication “4”)
Spacing between fasteners ≤2000 mm
Driving length into the soil Up to the notch
Conductor's fastening By bending the appropriate safety clip
Can support conductors made of Cu, Cu/eSn, SSt (Stainless Steel), St/tZn
For vertical installation of tape conductor in earthing system, installed in a trench filled with soil or concrete.
GTIN:
6103040-81
,
Product code:
6103040-71
,
Customs tariff No.:,
Gross weight:
320.00
,
PU:
50.00
Related products
