Lightning protection earthing

Περιμετρική γείωση & πλέγμα γείωσης

60x4mm copper tape conductor, code 6420640-70

Images
Additional Information
Certificates
tested
Technical data
Width 60 mm.
Thickness 4 mm.
Cross sectional area 240 mm².
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Tensile strength 200 – 450 N/mm².
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Copper tape used as air termination conductor, down conductor and earth conductor.
H.S Code:
74091900
,
Product code:
6420640-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
2134.00
gr/m,
PU:
40.00
m
Related products

50x6mm copper tape conductor, code 6420506-70

Images
Additional Information
Certificates
tested
Technical data
Width 50 mm.
Thickness 6 mm.
Cross sectional area 300 mm².
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Tensile strength 200 – 450 N/mm².
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Copper tape used as air termination conductor, down conductor and earth conductor.
H.S Code:
74091900
,
Product code:
6420506-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
2670.00
gr/m,
PU:
40.00
m
Related products

50x5mm copper tape conductor, code 6420505-70

Images
Additional Information
Certificates
tested
Technical data
Width 50 mm.
Thickness 5 mm.
Cross sectional area 250 mm².
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Tensile strength 200 – 450 N/mm².
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Copper tape used as air termination conductor, down conductor and earth conductor.
H.S Code:
74091900
,
Product code:
6420505-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
1780.00
gr/m,
PU:
40.00
m
Related products

50x4mm copper tape conductor, code 6420504-70

Images
Additional Information
Certificates
tested
Technical data
Width 50 mm.
Thickness 4 mm.
Cross sectional area 200 mm².
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Tensile strength 200 – 450 N/mm².
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Copper tape used as air termination conductor, down conductor and earth conductor.
H.S Code:
74091900
,
Product code:
6420504-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
1778.00
gr/m,
PU:
40.00
m
Related products

40x6mm copper tape conductor, code 6420406-70

Images
Additional Information
Certificates
tested
Technical data
Width 40 mm.
Thickness 6 mm.
Cross sectional area 240 mm².
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Tensile strength 200 – 450 N/mm².
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Copper tape used as air termination conductor, down conductor and earth conductor.
H.S Code:
74091900
,
Product code:
6420406-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
2134.00
gr/m,
PU:
40.00
m
Related products

40x5mm copper tape conductor, code 6420405-70

Images
Additional Information
Certificates
tested
Technical data
Width 40 mm.
Thickness 5 mm.
Cross sectional area 200 mm².
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Tensile strength 200 – 450 N/mm2.
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Copper tape used as air termination conductor, down conductor and earth conductor.
H.S Code:
74091900
,
Product code:
6420405-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
1778.00
gr/m,
PU:
40.00
m
Related products

40x4mm copper tape conductor, code 6420404-70

Images
Additional Information
Certificates
tested
Technical data
Width 40 mm.
Thickness 4 mm.
Cross sectional area 160 mm².
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Tensile strength 200 – 450 N/mm2.
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Straightening For straightening can be used straightener, ELEMKO code 6900100.
Copper tape used as air termination conductor, down conductor and earth conductor.
H.S Code:
74091900
,
Product code:
6420404-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
1424.00
gr/m,
PU:
40.00
m
Related products

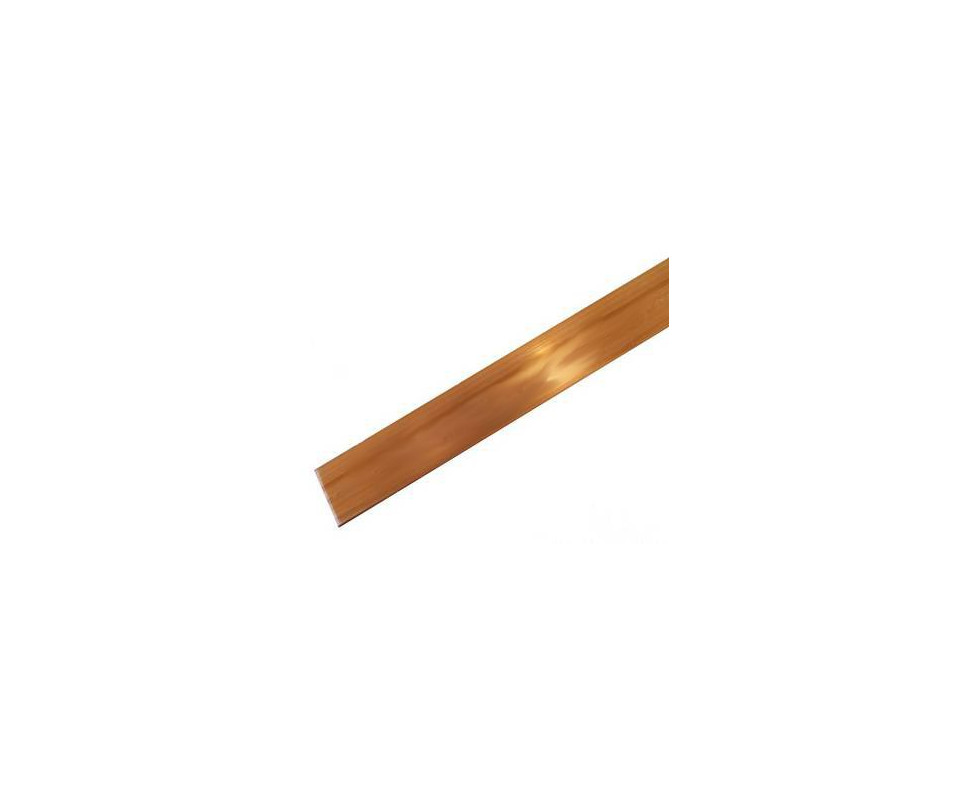

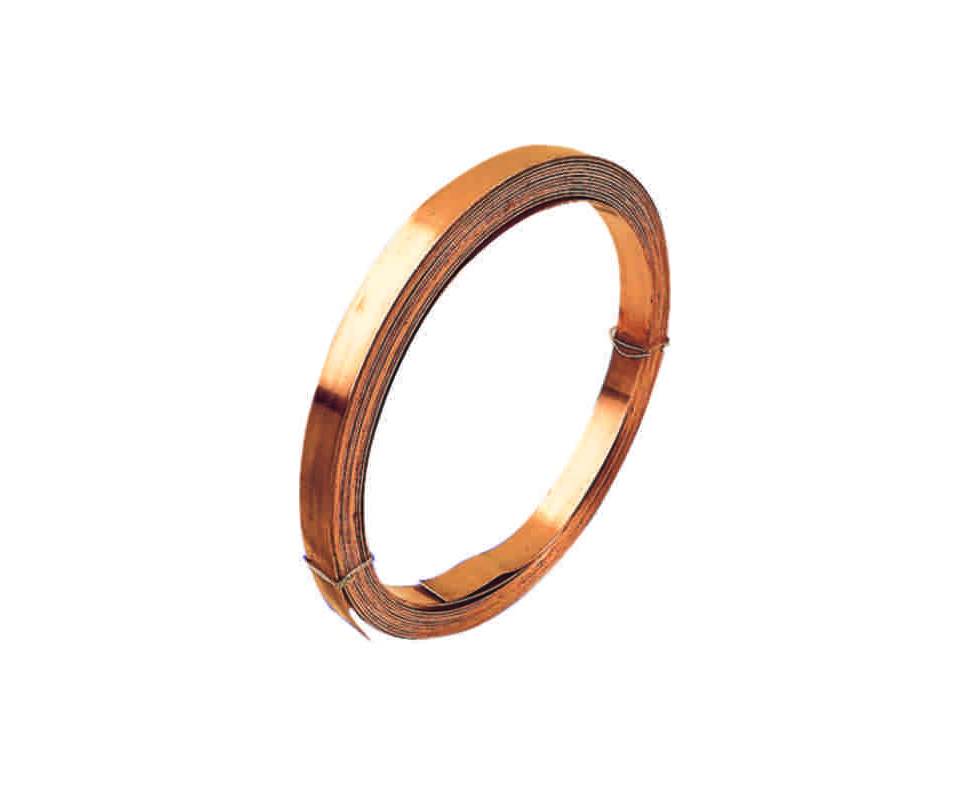

30x5mm copper tape conductor, code 6420305-70

Images
Additional Information
Certificates
tested
Technical data
Width 30 mm.
Thickness 5 mm.
Cross sectional area 150 mm².
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Tensile strength 200 – 450 N/mm2.
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Straightening For straightening can be used straightener, ELEMKO code 6900100.
Copper tape used as air termination conductor, down conductor and earth conductor.
H.S Code:
74091900
,
Product code:
6420305-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
1334.00
gr/m,
PU:
40.00
m
Related products

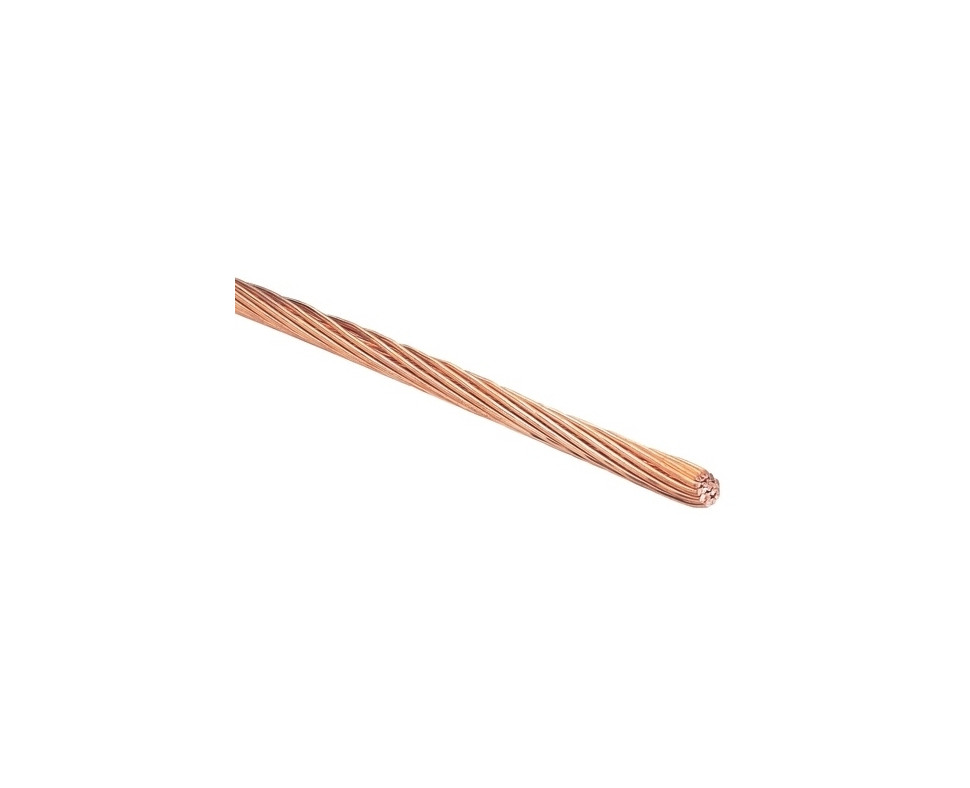

240 mm² nominal cross sectional area stranded conductor, code 6420240-70

Images
Additional Information
Certificates
tested
Technical data
Cross sectional area 240 mm².
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Electrical resistance ≤0,0762 Ω/km.
Tensile strength 200 – 450 N/mm².
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Copper or tin plated copper stranded conductor used as earth conductor.
H.S Code:
74081910
,
Product code:
6420240-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
1000.00
gr/m,
PU:
100.00
m
Related products

150mm² nominal cross sectional area stranded conductor, code 6420150-70

Images
Additional Information
Certificates
tested
Technical data
Cross sectional area 150 mm2.
Material Copper (Cu).
Electrical resistivity <0,018 μΩm.
Electrical resistance ≤0,126 Ω/km.
Tensile strength 200 – 450 N/mm².
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected buried in ground with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Copper or tin plated copper stranded conductor used as earth conductor.
H.S Code:
74081910
,
Product code:
6420150-70
,
Customs tariff No.:
929.3.5.2
,
Gross weight:
1000.00
gr/m,
PU:
100.00
m
