Fasteners for lightning protection conductors

Conductor fasteners

Fasteners used in air termination and down conductors in a Lightning Protection System (LPS) tested according to IEC ΕΝ 62561 - 4

St/tZn Ø16mm rod fastener, code 6101300-71

Images
Additional Information
Certificates
tested
Technical data
Material Hot dip galvanized steel (St/tZn)
Screws M6x16 mm, V2A stainless steel screws, one electroplated zinc steel wood fixing screw
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N / Axial load, 50 N
Conductor's dimensions Ø16 mm
Compatibility with conductors made of Al, SSt (Stainless Steel), St/tZn
Tightening torque of conductor 3,5Nm
Fixing on brick or concrete Through a wood fixing screw (included) and a PVC wall plug Ø8 mm (not included)
Spacing between fasteners ≤1000 mm
Fastening round rod. Used in air termination rods, down conductor system (earth lead-in rods). Suitable for brick or concrete walls.
GTIN:
6101300-81
,
Product code:
6101300-71
,
Customs tariff No.:,
Gross weight:
85.00
,
PU:
50.00
Related products

St/tZn fastener for tape conductor up to 30mm width, code 6101200-71

Images
Additional Information
Certificates
tested
Technical data
Material Hot dip galvanized steel (St/tZn)
Screws M6x16 mm, V2A stainless steel screws, one electroplated zinc steel wood fixing screw
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N / Axial load, 50 N
Conductor's dimensions Up to 30x6 mm
Compatibility with conductors made of Al, SSt (Stainless Steel), St/tZn
Tightening torque of conductor 3,5Nm
Fixing on brick or concrete Through a wood fixing screw (included) and a PVC wall plug Ø8 mm (not included)
Spacing between fasteners of air termination conductors ≤500 mm1).
Spacing between fasteners of down conductors ≤1000 mm for heights ≤20 m. / ≤500 mm for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening tape conductor. Used in air termination system, down conductor system. Suitable for brick or concrete surfaces.
GTIN:
6101200-71
,
Product code:
6101200-71
,
Customs tariff No.:,
Gross weight:
76.00
,
PU:
50.00
Related products

Aluminium fastener for Ø8–10mm conductor, code 6141100-71

Images
Additional Information
Certificates
tested
Technical data
Material Conductor fastener: aluminium (Al). Spacer: Stainless steel (SSt).
Screws M6x16 mm, V2A stainless steel screws, one stainless steel wood fixing screw
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N / Axial load, 50 N
Conductor's dimensions Ø8–10 mm (50–70 mm2)
Compatibility with conductors made of Al, SSt (Stainless Steel), St/tZn
Tightening torque of conductor 3,5Nm
Fixing on brick or concrete Through a wood fixing screw (included) and a PVC wall plug Ø8 mm (not included)
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor. Used in air termination system, down conductor system. Suitable for brick or concrete surfaces.
GTIN:
6141100-81
,
Product code:
6141100-71
,
Customs tariff No.:,
Gross weight:
34.00
,
PU:
50.00
Related products

Aluminium fastener for Ø16mm, code 6141300-71

Images
Additional Information
Certificates
tested
Technical data
Material Conductor fastener: aluminium (Al). Spacer: Stainless steel (SSt).
Screws M6x16 mm, V2A stainless steel screws, one stainless steel wood fixing screw.
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N / Axial load, 50 N
Conductor's dimensions Ø16 mm
Compatibility with conductors made of Al, SSt (Stainless Steel), St/tZn
Tightening torque of conductor 3,5Nm
Fixing on brick or concrete Through a wood fixing screw (included) and a PVC wall plug Ø8 mm (not included)
Spacing between fasteners ≤1000 mm
Fastening round rod. Used in air termination rods, down conductor system (earth lead-in rods). Suitable for brick or concrete walls.
GTIN:
6141300-81
,
Product code:
6141300-71
,
Customs tariff No.:,
Gross weight:
42.00
,
PU:
50.00
Related products

Stainless steel fastener for tape conductor up to 30mm width, code 6161200-71

Images
Additional Information
Certificates
Technical data
Material Stainless steel (SSt – grade V2A)
Screws M6x16 mm, V2A stainless steel screws, one stainless steel wood fixing screw
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N / Axial load, 50 N
Conductor's dimensions Up to 30x6 mm
Compatibility with conductors made of Al, Cu, Cu/eSn, SSt (Stainless Steel), St/tZn
Tightening torque of conductor 3,5Nm
Fixing on brick or concrete Through a wood fixing screw (included) and a PVC wall plug Ø8 mm (not included)
Spacing between fasteners of air termination conductors ≤500 mm1).
Spacing between fasteners of down conductors ≤1000 mm for heights ≤20 m. / ≤500 mm for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening tape conductor. Used in air termination system, down conductor system. Suitable for brick or concrete surfaces.
GTIN:
6161200-71
,
Product code:
6161200-71
,
Customs tariff No.:,
Gross weight:
58.00
,
PU:
50.00
Related products

Stainless steel fastener for Ø8–10mm conductor, code 6161100-71

Images
Additional Information
Certificates
Technical data
Material Stainless steel (SSt – grade V2A)
Screws M6x16 mm, V2A stainless steel screws, one stainless steel wood fixing screw
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N / Axial load, 50 N
Conductor's dimensions Ø8–10 mm (50–70 mm2)
Compatibility with conductors made of Al, Cu, Cu/eSn, SSt (Stainless Steel), St/eCu, St/tZn
Tightening torque of conductor 3,5Nm
Fixing on brick or concrete Through a wood fixing screw (included) and a PVC wall plug Ø8 mm (not included)
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor. Used in air termination system, down conductor system. Suitable for brick or concrete surfaces.
GTIN:
6161100-81
,
Product code:
6161100-71
,
Customs tariff No.:,
Gross weight:
54.00
,
PU:
50.00
Related products

Polyamid fastener for Ø8mm conductor, code 6171100-71

Images
Additional Information
Certificates
Technical data
Material Polyamid material (Pl) UV and weather resistant
Screw One electroplated zinc steel wood fixing screw
Withstands (according to IEC ΕΝ 62561-4) Lateral load, 200 N
Conductor's dimensions Ø8mm (50mm2)
Compatibility with conductors made of Al, Cu, Cu/eSn, SSt (Stainless Steel), St/eCu, St/tZn
Conductor's fixing Clipping without using any tool
Fixing on brick or concrete Through the wood fixing screw and the PVC wall plug Ø8 mm included
Spacing between fasteners of air termination conductors ≤1000 mm for solid conductor1). / ≤500 mm for stranded conductor1).
Spacing between fasteners of down conductors ≤1000 mm for solid conductor. / ≤1000 mm for stranded conductor used for heights ≤20 m. / ≤500 mm for stranded conductor for heights ≥20 m.
Before and after of change of direction or clamp or contraction-expansion absorbing component. ≤300 mm.
Fastening round or stranded conductor. Used in air termination system, down conductor system. Suitable for brick or concrete surfaces.
GTIN:
6171100-81
,
Product code:
6171100-71
,
Customs tariff No.:,
Gross weight:
8.00
gr/piece,
PU:
500.00
Related products

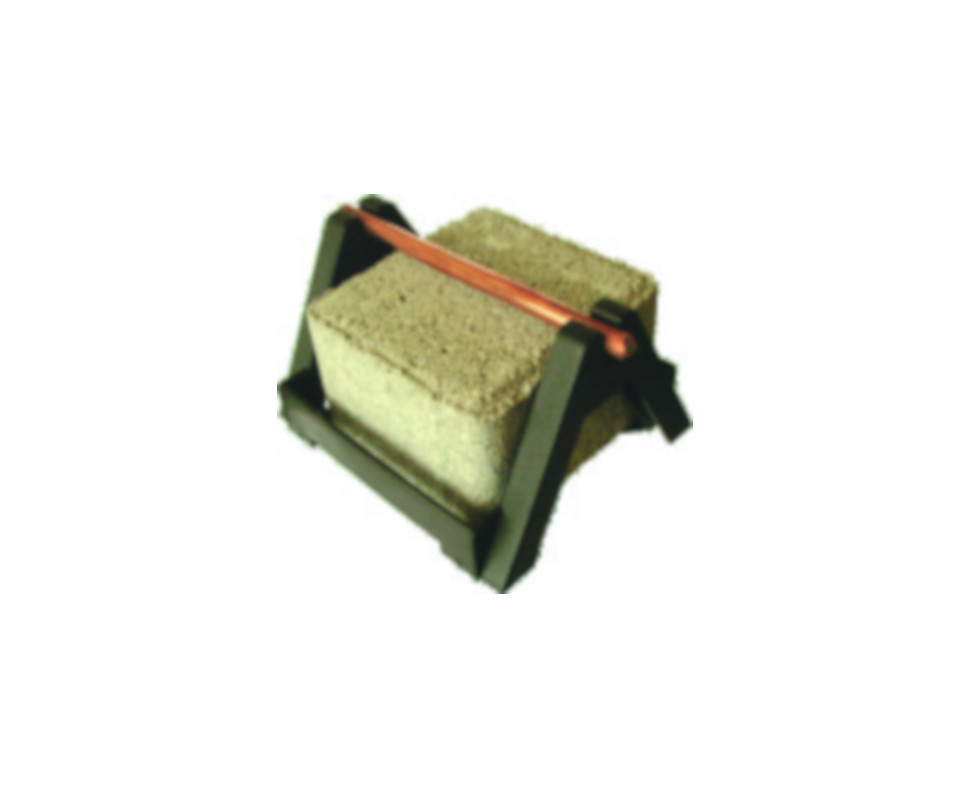

Ø6–10mm conductor fastener for waterproof flat roofs, code 6130104-71

Images
Additional Information
Certificates
Technical data
Material Plastic, suitable for external installation and resistant to ultraviolet radiation
Dimensions 135x115x85 mm
Conductor's dimensions Ø6 – 10 mm (for Ø10 mm conductor is needed the adapter included in the fasteners components)
Compatibility with conductors made of Al, Cu, Cu/eSn, SSt (Stainless Steel), St/eCu, St/tZn
Conductor's installation The conductor is clipped on the fastener without using any tools.
Fixing The fixation of the fastener is achieved due to its weight (needs a concrete cube 100x100x60mm, ELEMKO code 61 30 105) as well as to the number of the fasteners to be used. Also can be adherent using appropriate material.
Spacing between fasteners (where additional mechanical strength is required, the spacing between the fasteners may be reduced.) ≤1000 mm for solid conductor. / ≤500 mm for stranded conductor. / ≤300 mm before and after of change of direction or clamp or contraction-expansion absorbing component.
Fastening round conductor on waterproof flat roofs.
GTIN:
6130104-81
,
Product code:
6130104-71
,
Customs tariff No.:,
Gross weight:
64.00
,
PU:
100.00
Related products

Concrete cube for conductor fastener used on water proof flat roofs, code 6130105-70

Images
Additional Information
Certificates
Technical data
Material Concrete.
Dimensions 100x100x60 mm
Fixation of fastener used on waterproof flat roofs. The fixation of the fastener is achieved due to the weight of the concrete cube as well as to the number of the fasteners to be ...
GTIN:
6130105-80
,
Product code:
6130105-70
,
Customs tariff No.:,
Gross weight:
1112.00
,
PU:
1.00
Related products
