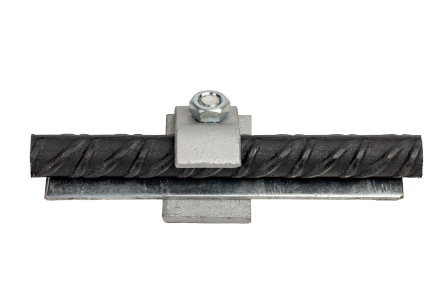

Clamp fastener for foundation earthing system, code 6201001-71
GTIN:
6201001-81
,
Product code:
6201001-71
,
Customs tariff No.:
929.3.2.3
,
Gross weight:
184.00
,
PU:
25.00
Certificates
Additional Information
Related products
Width 30 mm
Thickness 3,5 mm
Cross sectional area 105 mm2
Core material Steel (St)
Coating material Zinc (Zn)
Zinc coating weight >500 gr/m2
Type of coating method Hot dip
Electrical resistivity <0,25 μΩm
Tensile strength 290 – 510 N/mm2
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Stainless Steel (SSt), St/tZn.
Can be connected buried in ground with SSt (Stainless Steel), St/tZn.
Can be connected in concrete with Cu, Cu-A (copper alloy), Cu/eSn, SSt (Stainless Steel), St/eCu, St/tZn.
30x3,5mm hot dip galvanized steel tape conductor (29m coil), code 6401132-70
GTIN:
6401132-80
,
Product code:
6401132-70
,
Customs tariff No.:
929.3.5.1
,
Gross weight:
865.00
gr/m,
PU:
29.00
m
Certificates
Additional Information
30x3,5mm hot dip galvanized steel tape conductor (29m coil), code 6401132-70
GTIN:
6401132-80
,
Product code:
6401132-70
,
Customs tariff No.:
929.3.5.1
,
Gross weight:
865.00
gr/m,
PU:
29.00
m
Material Hot dip galvanized steel (St/tZn)
Description Is consisted of two external plates with dimensions 50x50 mm and one intermediate plate.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts. / M6 V2A stainless steel nuts.
Tape's dimensions Up to 30 mm width and 5 mm thickness.
Connection arrangements Cross connection (B1). / Parallel connection (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Al, Stainless Steel (SSt), St/tZn.
Can be connected buried in ground with Stainless Steel (SSt), St/tZn.
Can be connected in concrete with Cu, Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn.
Tightening torque 9 Nm.
St/tZn, tape conductor (30mm/30mm) connection clamp, code 6201833-71
GTIN:
6201833-81
,
Product code:
6201833-71
,
Customs tariff No.:
929.3.2.1
,
Gross weight:
140.00
,
PU:
25.00
Certificates
Additional Information
St/tZn, tape conductor (30mm/30mm) connection clamp, code 6201833-71
GTIN:
6201833-81
,
Product code:
6201833-71
,
Customs tariff No.:
929.3.2.1
,
Gross weight:
140.00
,
PU:
25.00
