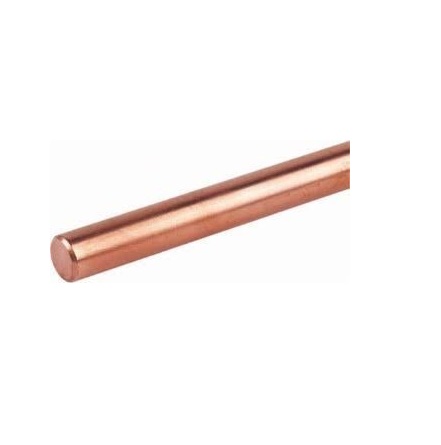

Ø10mm solid round conductor, copper, code: 6420010
H.S Code:
74081910
,
Product code:
6420010-70
,
Customs tariff No.:,
Gross weight:
699.00
gr/m,
PU:
Certificates
Additional Information
Related products
Material Copper (Cu).
Description Is consisted of two external plates with dimensions 50x50 mm and one intermediate plate.
Bolts / nuts M6x25 mm, V2A stainless steel carriage bolts, M6 V2A stainless steel nuts.
Conductor's dimensions Ø8–10 mm (50–70 mm2).
Connection arrangements Cross (B1). / Parallel (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu/eSn, SSt (Stainless Steel), St/eCu.
Can be connected buried in ground with Cu, Cu/eSn, SSt (Stainless Steel), St/eCu.
Can be connected in concrete with Cu, Cu/eSn, SSt (Stainless Steel), St/eCu, St/tZn.
Tightening torque 9 Nm.
Copper connection clamp for Ø8–10mm conductors, code 6221810-71
H.S Code:
6221810-81
,
Product code:
6221810-71
,
Customs tariff No.:
929.3.2.2
,
Gross weight:
156.00
,
PU:
25.00
Certificates
Additional Information
Copper connection clamp for Ø8–10mm conductors, code 6221810-71
H.S Code:
6221810-81
,
Product code:
6221810-71
,
Customs tariff No.:
929.3.2.2
,
Gross weight:
156.00
,
PU:
25.00
Material Copper (Cu)
Description Is consisted of two external plates with dimensions 60x60 mm and one intermediate plate.
Bolts / nuts M8x30 mm, V2A stainless steel hexagon head bolts. M8 V2A stainless steel nuts.
Conductor's dimensions Ø8–10 mm (50–70 mm2)
Connection arrangements Cross (B1). Parallel (B2).
Installation Above ground, buried in ground, embedded in concrete.
Can be connected above ground with Cu, Cu/eSn, Stainless Steel (SSt), St/eCu
Can be connected buried in ground with Cu, Cu/eSn, Stainless Steel (SSt), St/eCu
Can be connected in concrete with Cu, Cu/eSn, Stainless Steel (SSt), St/eCu, St/tZn
Tightening torque 13 Nm
Round or stranded conductor connector, code: 6221818
H.S Code:
74198090
,
Product code:
6221818-71
,
Customs tariff No.:,
Gross weight:
374.00
gr,
PU:
Certificates
Additional Information
Round or stranded conductor connector, code: 6221818
H.S Code:
74198090
,
Product code:
6221818-71
,
Customs tariff No.:,
Gross weight:
374.00
gr,
PU:
